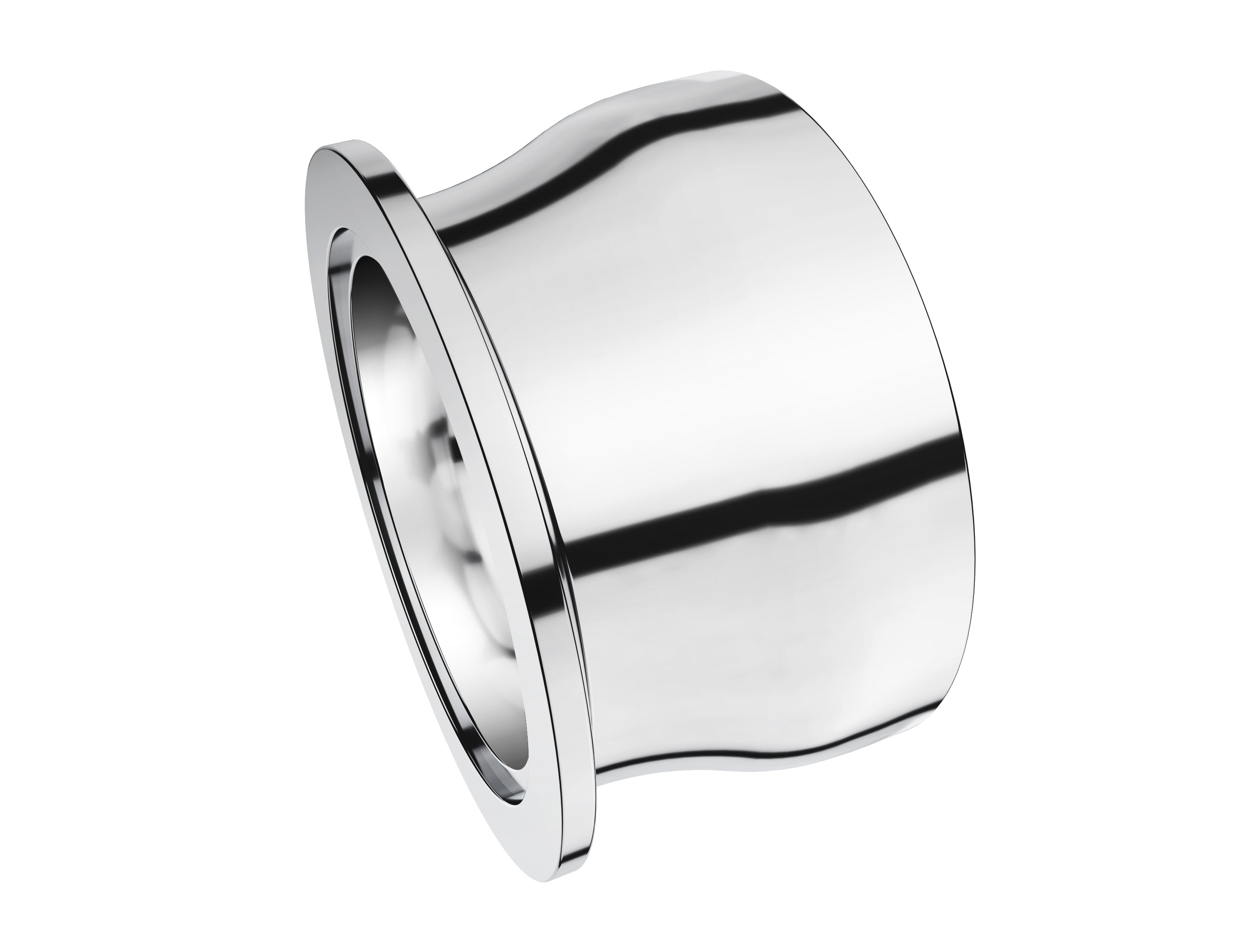

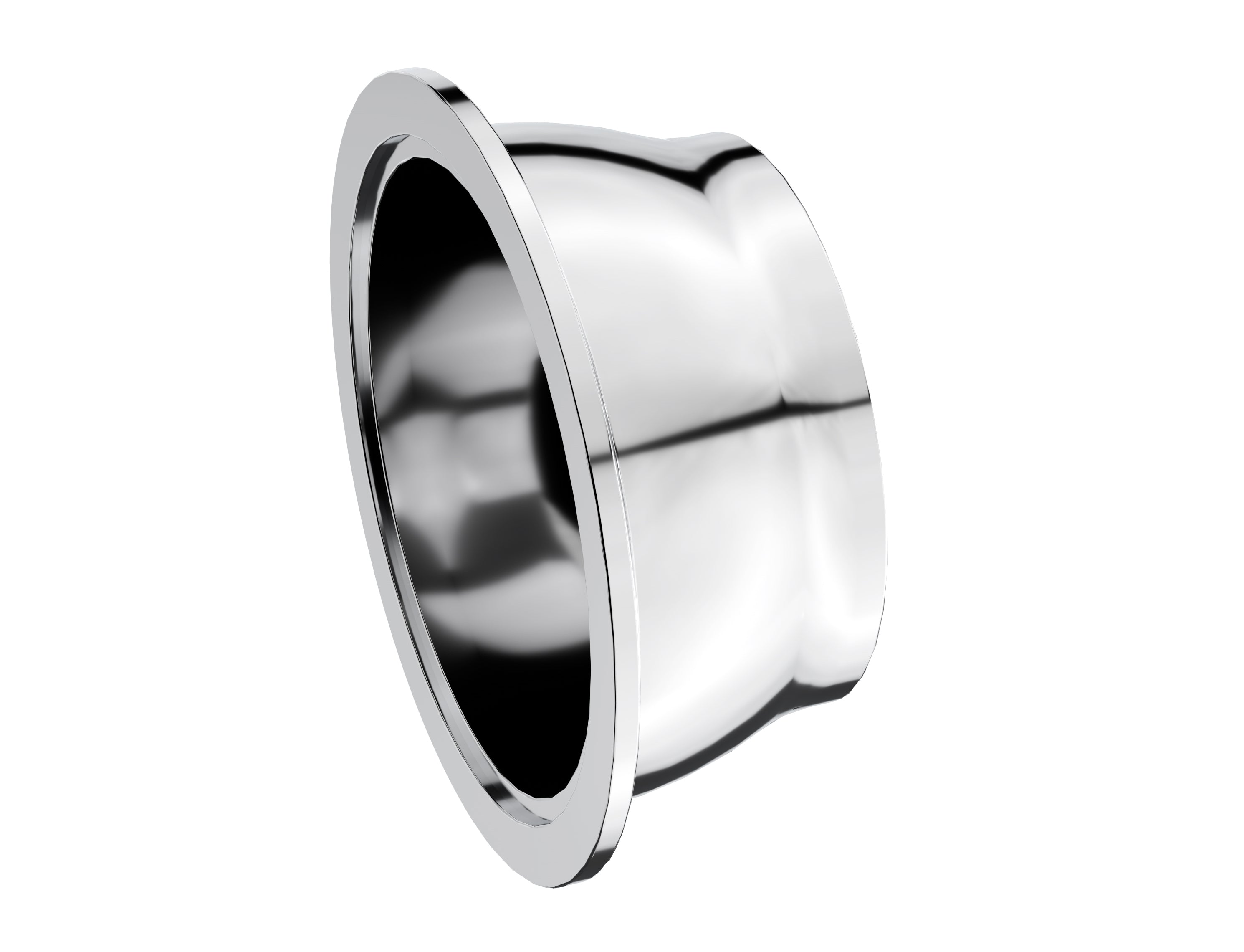

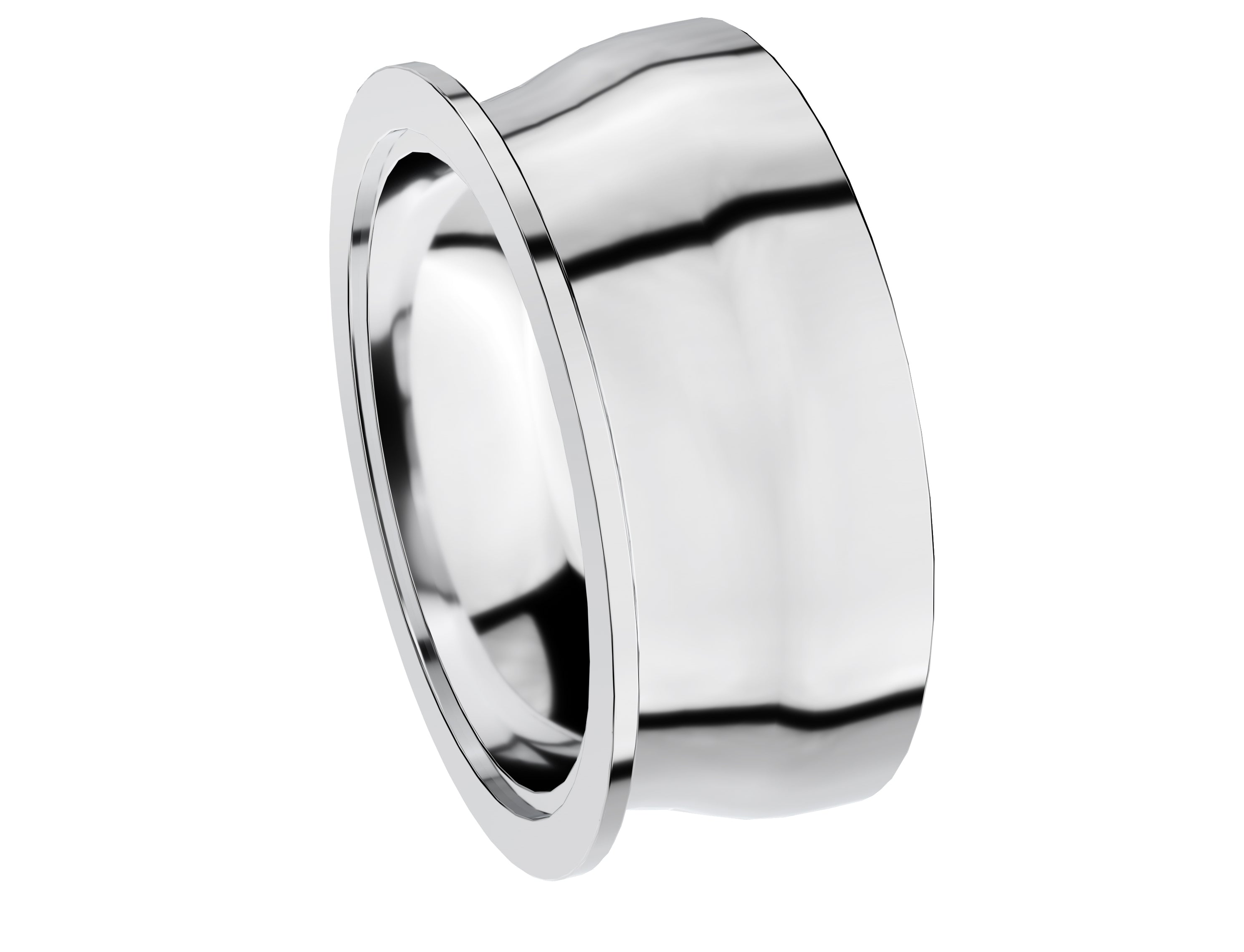

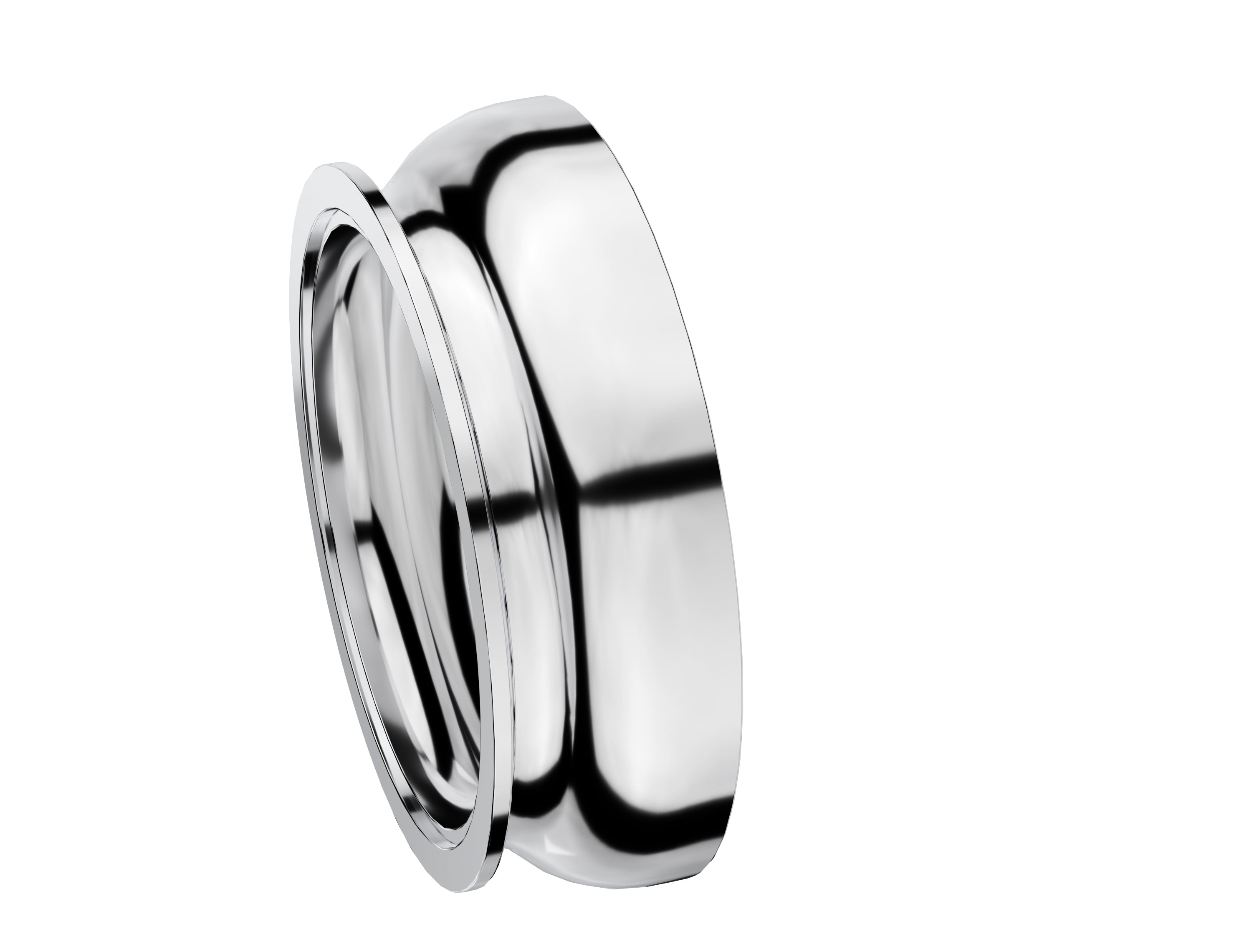

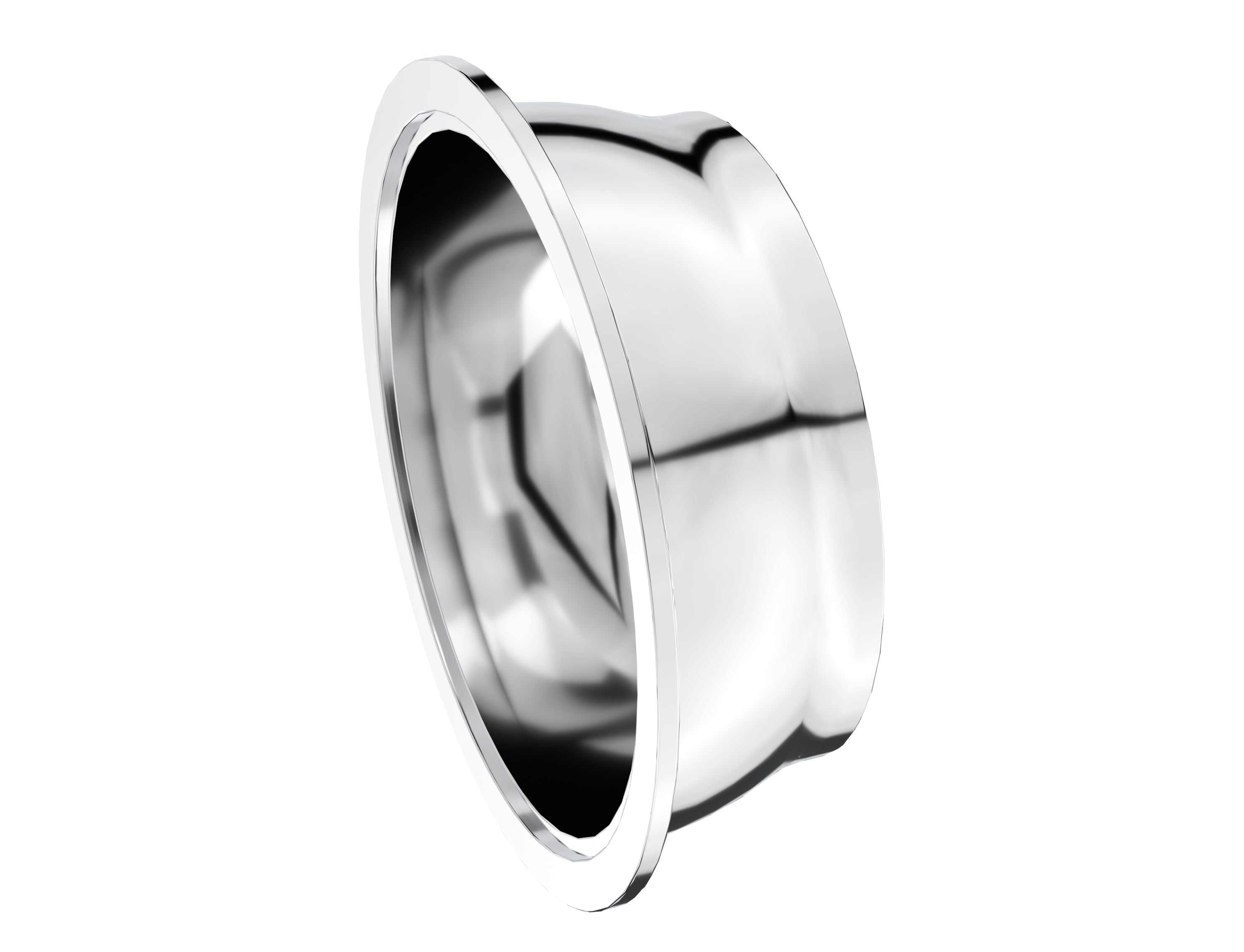

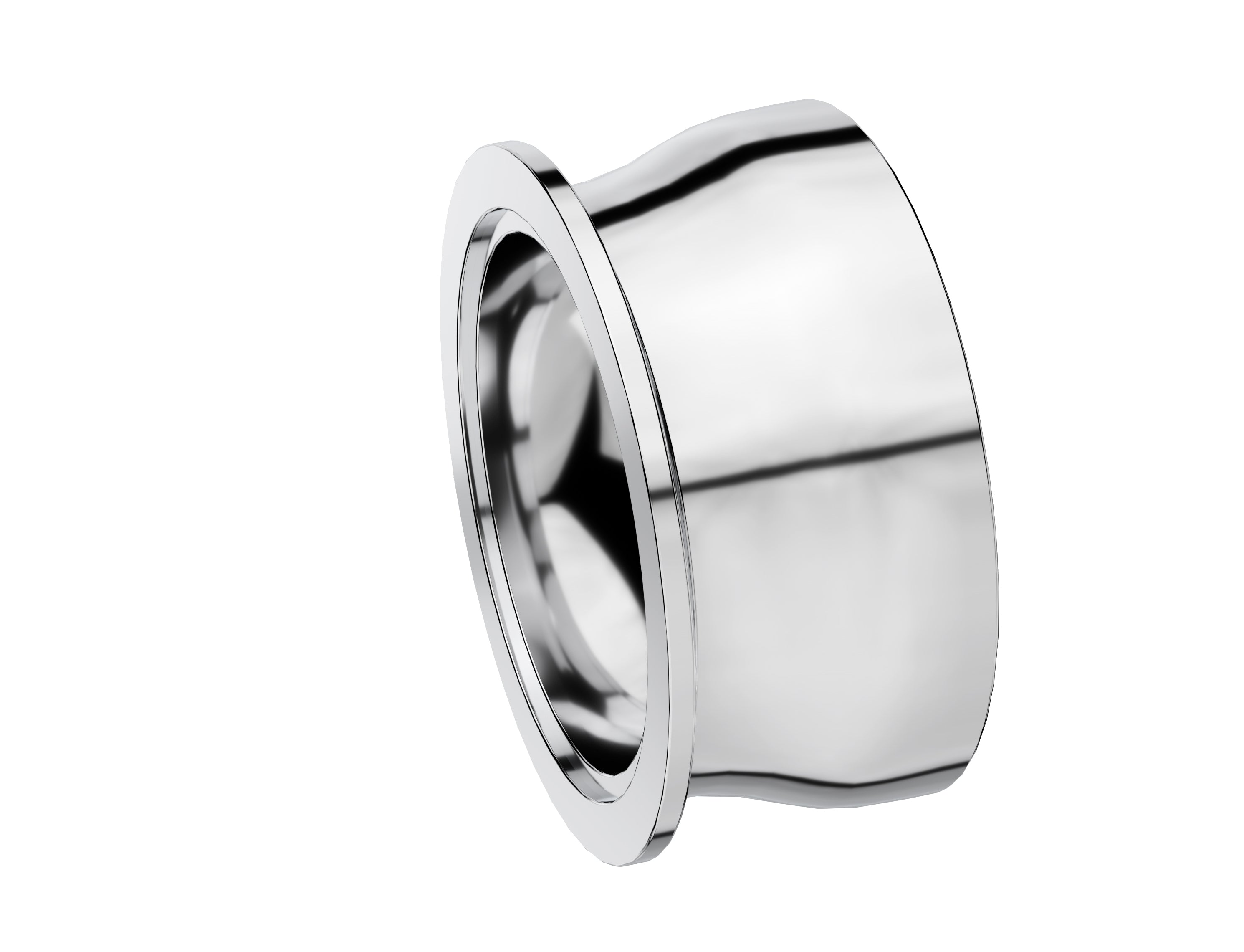

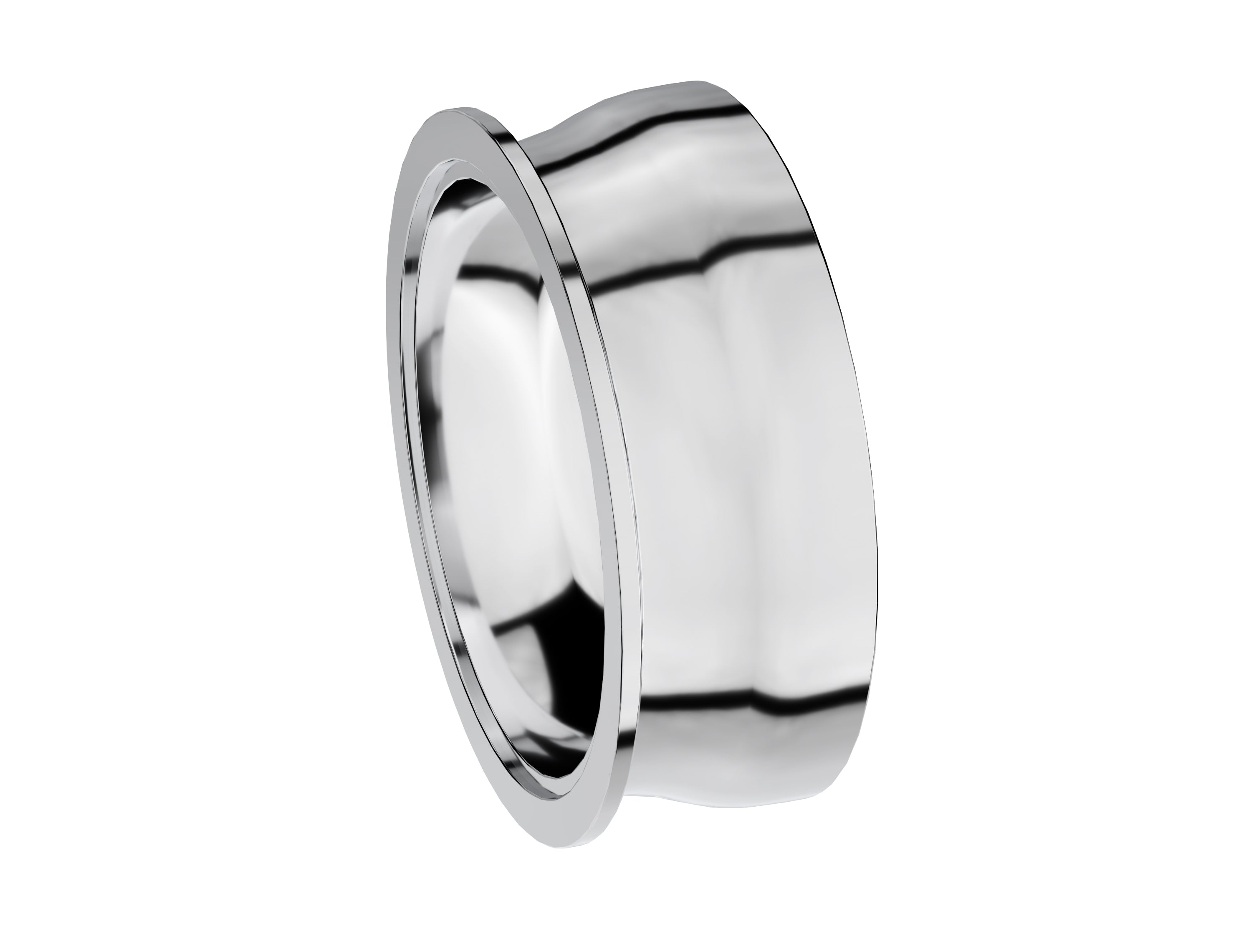

JAMO Mirror V-Band Billet Long Transition (Female flange to Tube)

Product Overview

The JAMO Mirror V-Band Billet Long Transition with Female Flange is designed to connect the JAMO Clamp system to a different tube diameter while providing a smooth, extended transition. Precision manufactured from 100% 6061 billet aluminium using 5-axis CNC machining, it provides excellent fit and finish for high-boost and extreme pressurised-air applications. When correctly assembled as part of the JAMO Clamp system, the connection has been tested to maintain a leak-resistant seal at pressures up to 1,000 psi.

Key Features

• 100% 6061 billet aluminium construction
• Precision manufactured using 5-axis CNC machining
• Long transition design for connecting different tube diameters
• Female flange with a mirror-finish sealing surface
• Lightweight construction
• Designed for use with the JAMO Clamp system
• Compatible O-ring seals are rated for temperatures up to 400°F (205°C)
• Covered by our Limited Lifetime Guarantee against defects in materials and workmanship. Terms and exclusions apply.

Specifications

Material: 100% 6061 billet aluminium

Manufacturing: 5-axis CNC machined

System test pressure: Up to 1,000 psi when correctly assembled

Compatible O-ring temperature rating: Up to 400°F (205°C)

Available connections: 2.0" flange to 2.5" tube, 2.5" flange to 3.0" tube, 3.0" flange to 2.5" tube, 3.0" flange to 3.5" tube, 3.5" flange to 3.0" tube, 3.5" flange to 4.0" tube, 4.0" flange to 3.5" tube and 4.0" flange to 5.0" tube

What’s Included

• 1 × Female flange long transition

Compatibility / Application

Select the connection that matches your JAMO Clamp size and required tube diameter. Check all dimensions and installation requirements before ordering. Professional fabrication and installation are recommended.
