304 Stainless Steel 90° Mandrel Bend – 1.5D

Product Overview

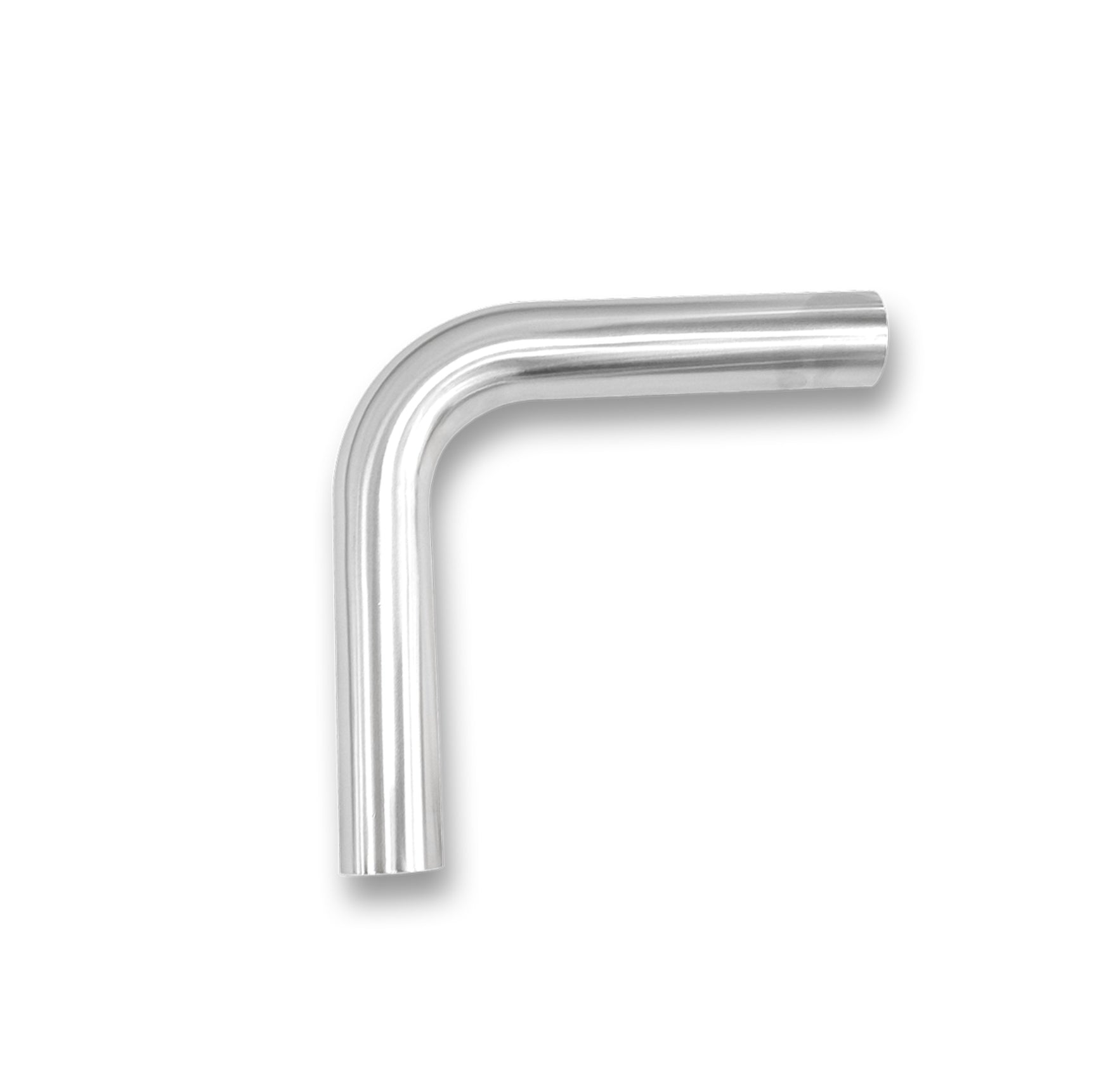

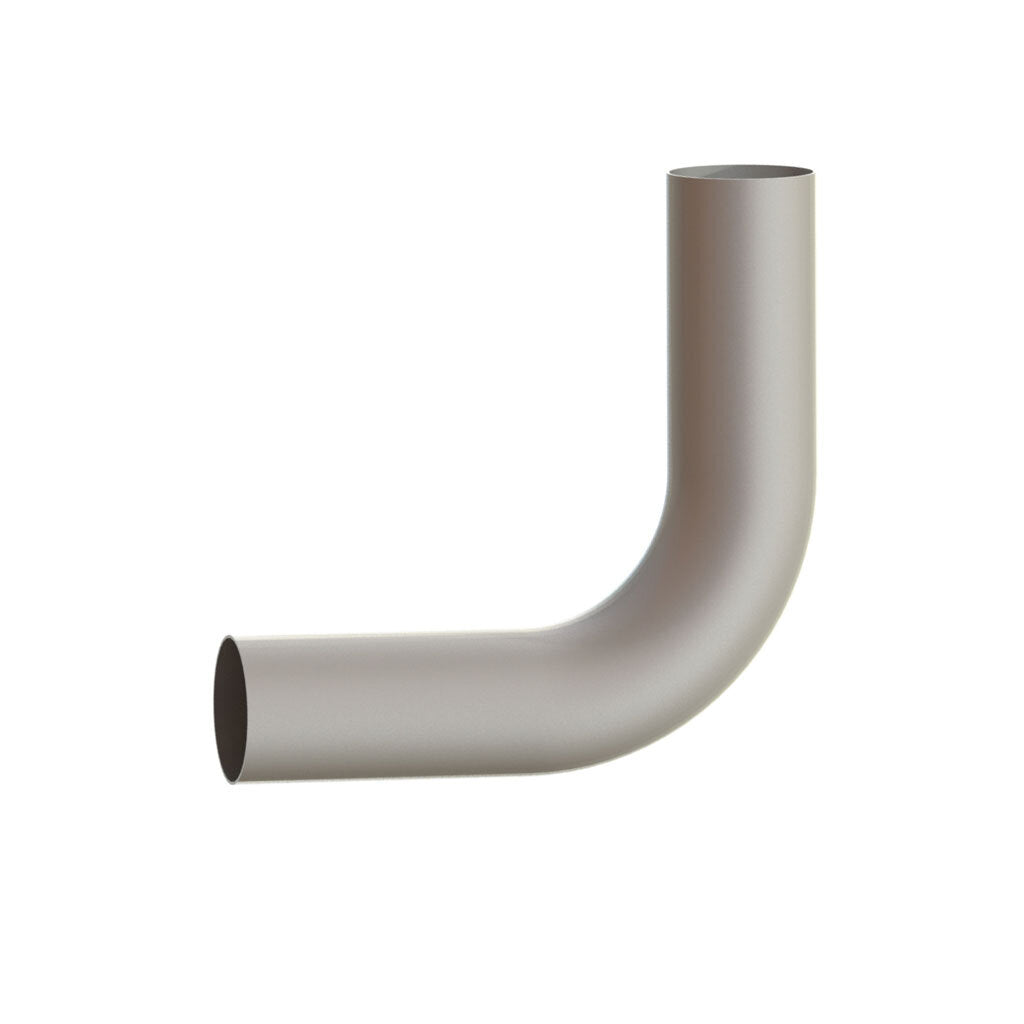

JAMO 304 stainless steel 90° mandrel bend with a 1.5D centreline radius, designed for custom and professional exhaust fabrication. Each bend has 6-inch straight legs to provide useful working length for cutting, positioning and welding.

Key Features

• Manufactured from 304 stainless steel
• 90° mandrel-formed bend for smooth exhaust flow
• 1.5D centreline radius
• 6-inch straight legs for fabrication flexibility
• Suitable for custom and professional exhaust fabrication
• Limited Lifetime Guarantee

Specifications

• Material: 304 stainless steel
• Bend angle: 90°
• Centreline radius: 1.5D
• Leg length: 6 inches
• Outside diameters: 1.5", 1.625", 1.75", 1.875", 2", 2.125", 2.25", 2.375", 2.5", 2.75", 3", 3.25", 3.5", 4" and 5"
• Wall thickness: 1.25mm for 1.5" and 1.625"; 1.5mm for all other sizes

What’s Included

One 304 stainless steel 90° mandrel bend in the selected size.

Compatibility / Application

Suitable for custom exhaust systems and professional fabrication. Please select the required outside diameter and check the centreline radius, wall thickness and installation dimensions before ordering.

UK Stock & Dispatch

Stocked in our UK warehouse. Orders placed before 12pm Monday to Friday are dispatched the same working day via Royal Mail Tracked 24.
